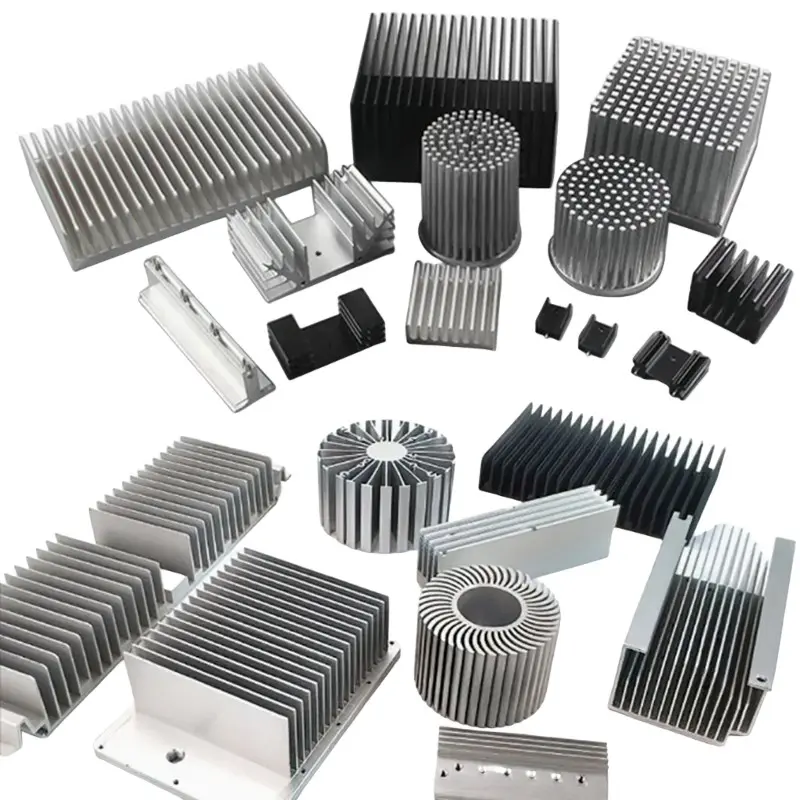

产品 (3).jpg

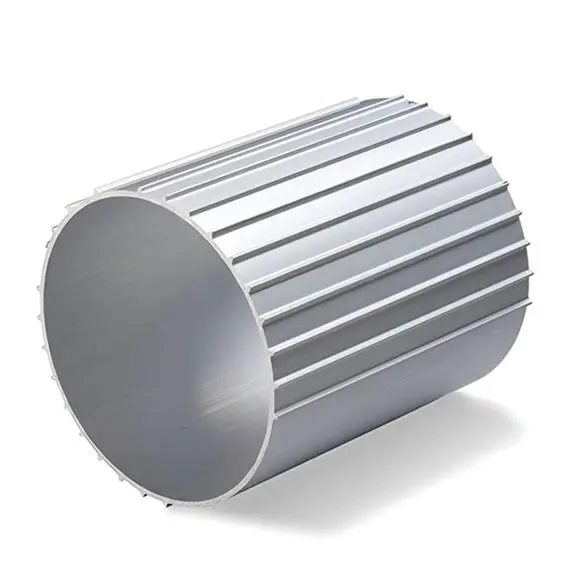

产品 (6).bmp

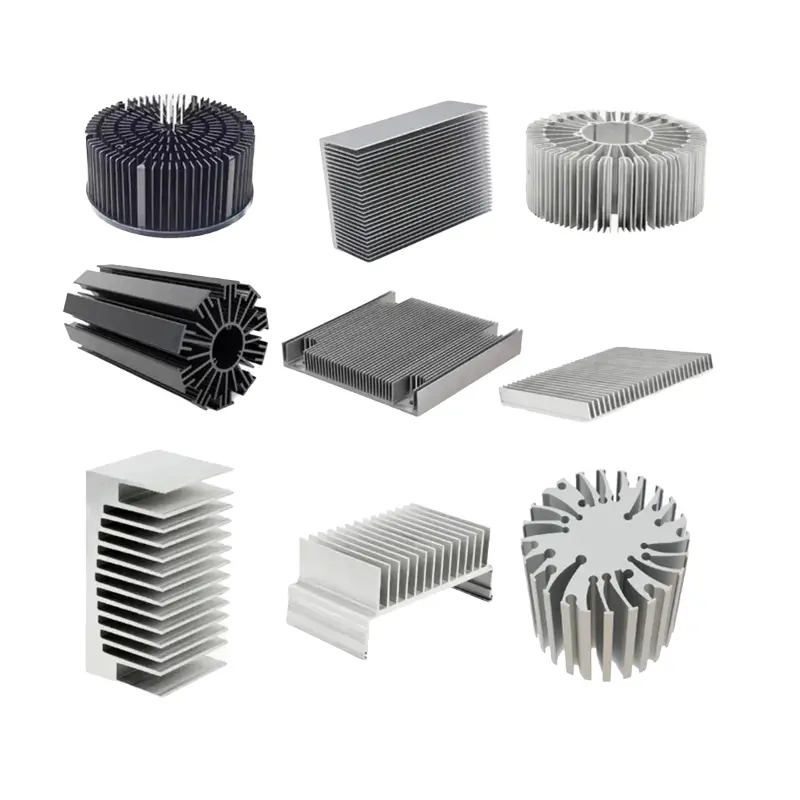

产品 (5).png

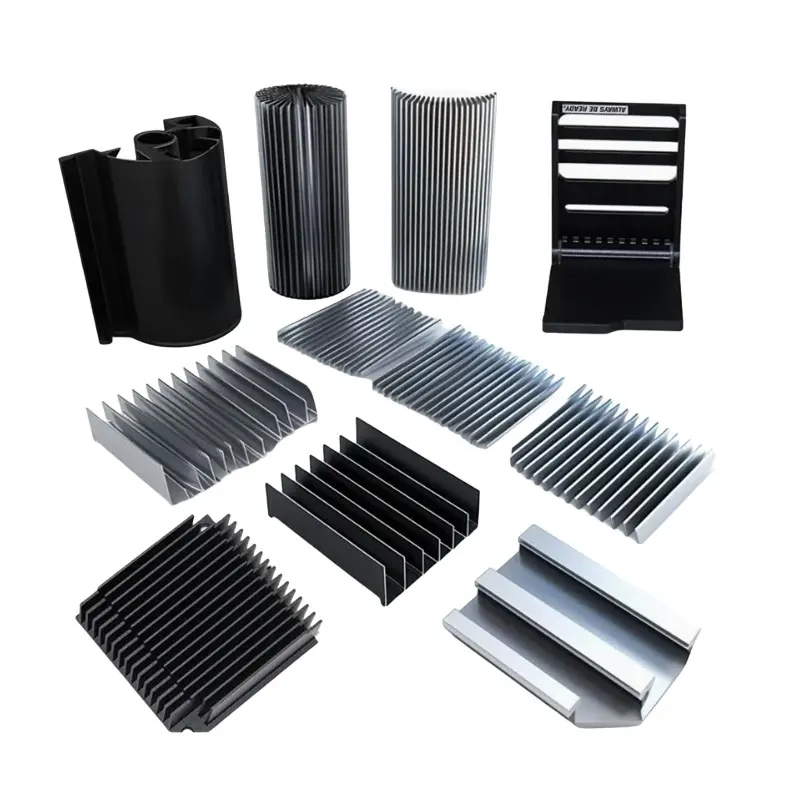

产品 (4).jpg
产品 (2).jpg
场景 (2).png
场景 (1).png

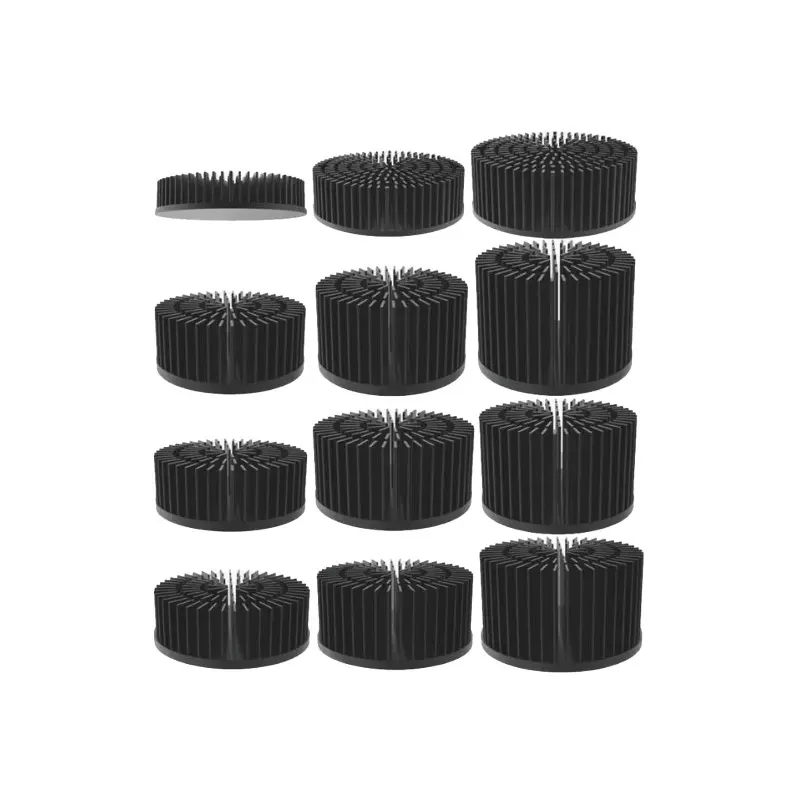

产品 (1).jpg
场景 (4).png
场景 (3).png

Aluminium a6061 Alloy Section Aluminum Extruded Profiler Frame

Sainnor provides a wide range of finished and semi-finished aluminum products widely used across various industries.

We also offer OEM/ODM services, tailored to meet customer requirements at competitive costs and high availability.

    Contact us
    product details

    Technical Specifications

    Product Name

    Aluminium a6061 Alloy Section Aluminum Extruded Profiler Frame

    Product Range

    New energy vehicles, machinery, electric appliances, LED lighting, power electronics, automotive, or any other industry

    Aluminum Alloy

    5000 series, 6000 series, 7000 series

    Temper

    T5-T8

    Shape

    customization

    Color

    customization

    Surface Treatment

    mill finished, anodized, wood grain, power coating, sand blasting, electrophoresis, brushed, polishing, etc

    CNC Deep Processing

    cutting, drilling, machining, punching, bending, tapping and so on

    Certifications

    CE, ISO, SGS, TUV, ROHS

    Samples

    free sample. 5-7 days delivered to you.

    MOQ

    1ton for each profile

    Delivery Time

    Mold developing and sample conformation is 12-15 days, then production duration is 15-25 days after receipt of deposit from buyer.

    Payment Terms

    30% deposit before production, and balance before shipment.

    Port

    Qingdao, Shandong

    Key Features of Aluminum Heat Sinks

    Thermal Conductivity: The average thermal conductivity of aluminum is approximately 136-205 W/(m·K), only 60% that of copper. These heat sinks compensate for this lower thermal conductivity through an optimized design and increased surface area, enabling efficient heat dissipation.

    Corrosion Resistance: Aluminum naturally forms a protective oxide layer upon contact with air, allowing it to withstand most environmental conditions. However, corrosion resistance may be insufficient in alkaline or highly acidic environments.

    Density and Weight: Aluminum's low density (2.7 g/cm³) is approximately one-third that of copper, making it lightweight. This makes it ideal for applications where weight reduction is crucial.

    Manufacturing and Machining: Aluminum is easy to machine, especially by CNC machining and extrusion. Its smooth texture allows for the fabrication of thin and complex heat sinks without premature tool wear. This makes it ideal for complex refrigeration systems and mass production.
    四、Four Main Applications

    LED Lighting: Small heat sink for incandescent bulbs and fluorescent lamps: Prevents brightness degradation and extends LED lifespan by up to 50,000 hours.

    Industrial Equipment: Large finned heat sink for inverters and motors: Maintains temperatures below 60°C even in a 40°C workplace.

    Renewable Energy: Heat sink for electric vehicle chargers and battery modules: Provides stable cooling in environments ranging from -30°C to 60°C.

    Home Appliances: Ultra-thin heat sink for air conditioners and TVs: Achieves quiet operation and compactness.

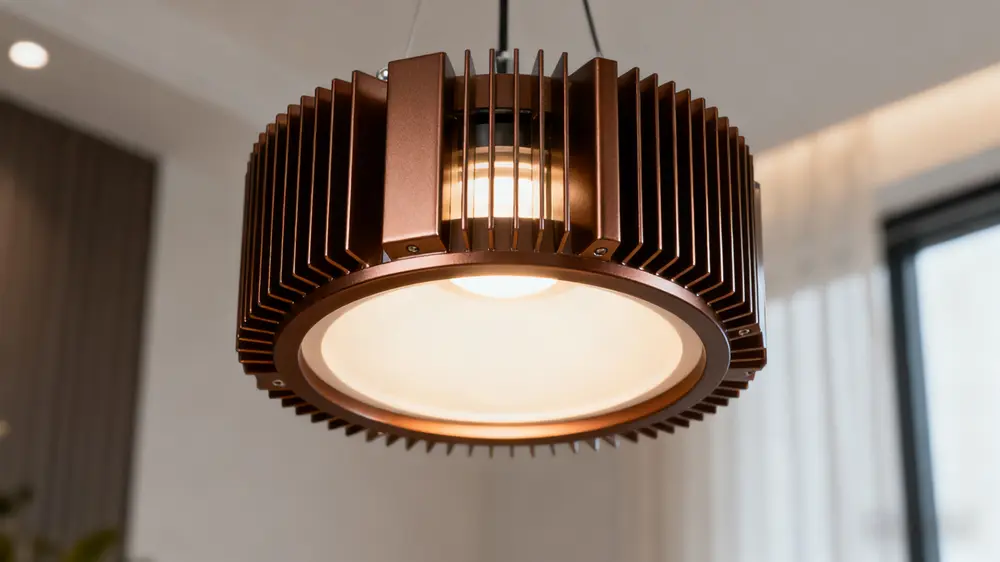

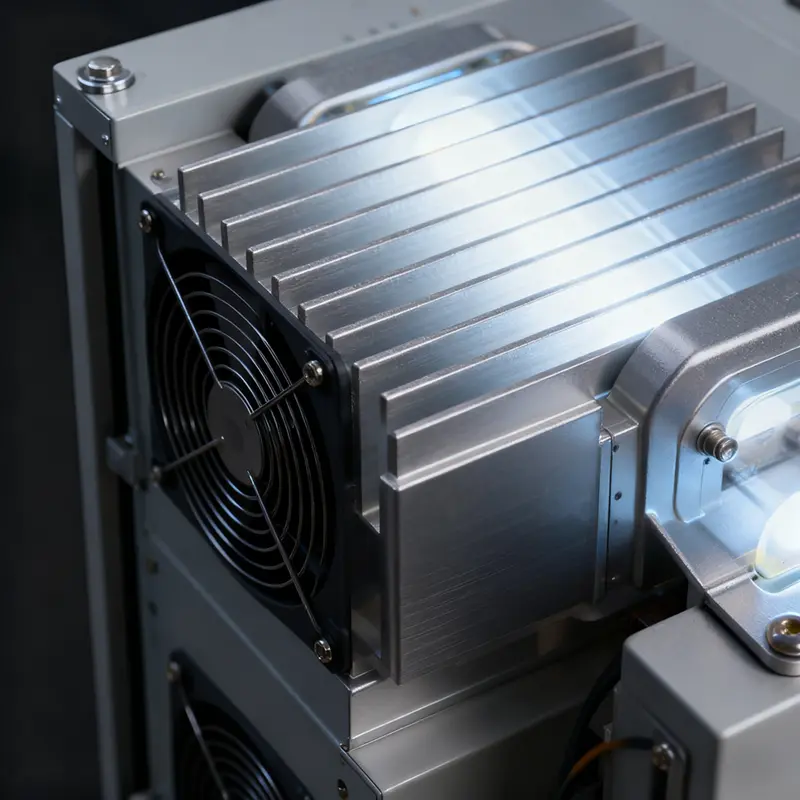

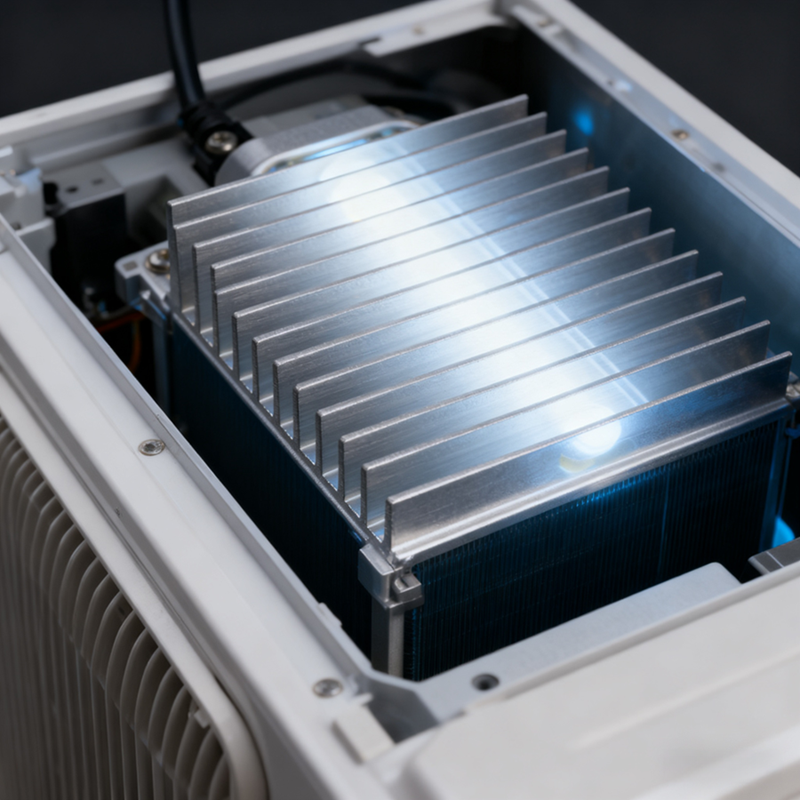

    场景 (1)场景 (2)场景 (3)场景 (4)



    Quality Assurance and Management

    Adhering to the principles of technological innovation, quality, and customer focus, we implement strict quality control through the following departments:

    Functional departments: Administration, Production, Finance, Marketing, and Quality Control.

    Compliant with international standards (GB/T 5237, ASTM, BS, EN).

    Comprehensive testing is performed throughout the extrusion, surface treatment, and packaging processes.

    Streamlined workflows ensure on-time delivery to overseas customers, and efficient delivery is achieved through Linyi's logistics network
